JAD: The Reference Implementation for Dataspace-as-a-Service

JAD: The Reference Implementation for Dataspace-as-a-Service

· 6 min read
Matthias Buchhorn-Roth
Cloud & Dataspace Architect (Consultant)

Target Audience: Technical Decision Makers, Enterprise Architects, and Developers who need to run or extend the platform.

You cannot evaluate a dataspace by reading about it; you need to see it run. JAD (Just Another Demonstrator) is the reference implementation for a modern Dataspace-as-a-Service platform.

Why JAD Matters​

Cloud providers evaluating dataspaces face a practical problem: how to offer the service without running a connector per customer. JAD solves this by demonstrating:

  • A complete, working deployment: Full architecture, not a toy demo.
  • Multi-tenant control plane: EDC-V keeps economics viable.
  • Automated tenant management: Connector Fabric Manager (CFM) handles lifecycle.
  • End-to-end workflows: Onboarding, credentials, catalog, negotiation, data transfer.

What is a Dataspace?​

A dataspace is a network for sharing data with sovereignty: every exchange enforces identity, policy, and auditability so data owners retain control even after sharing.

What’s In The Box​

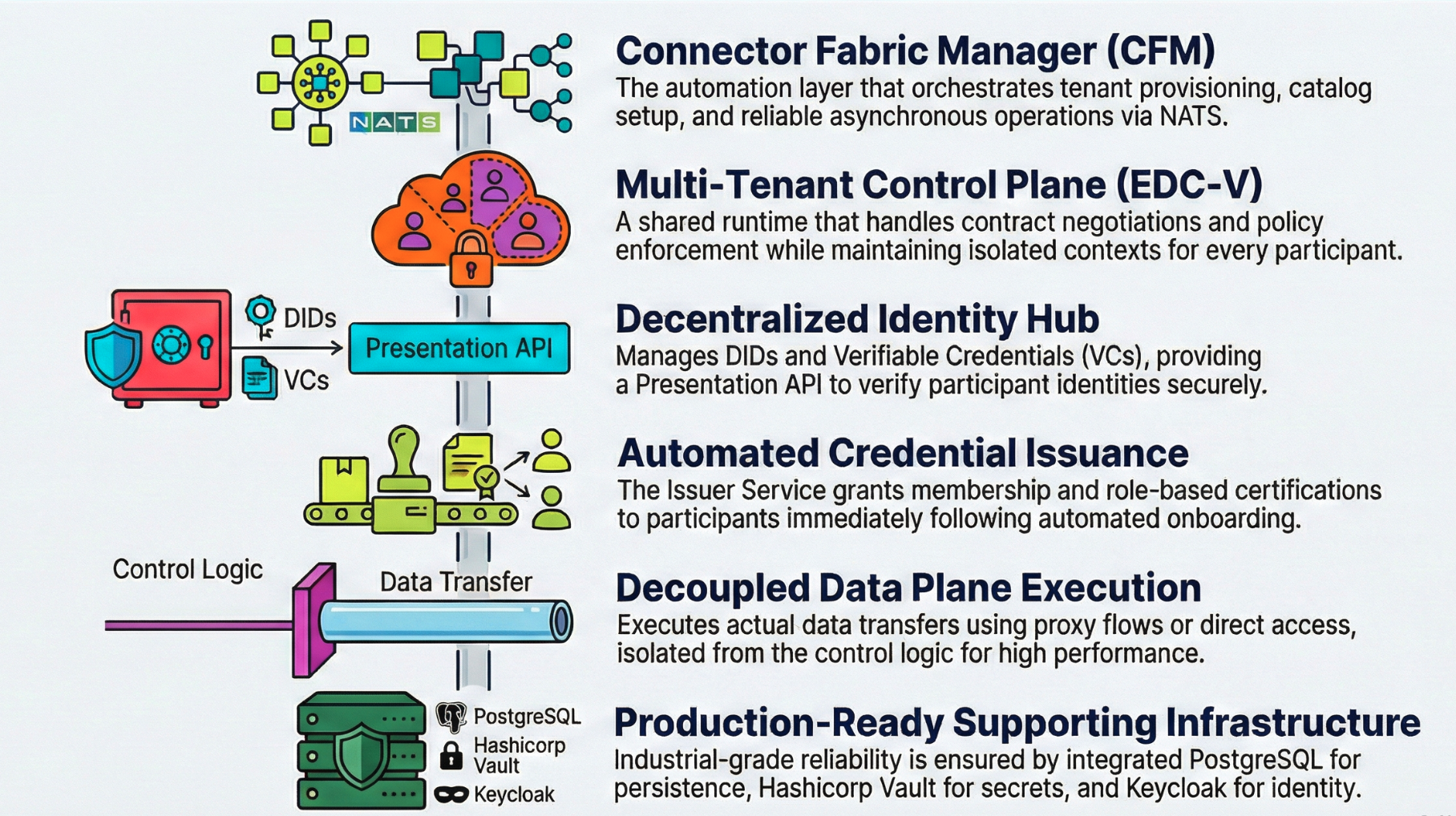

JAD deploys nine core services plus supporting infrastructure. Each component is introduced in the context of the running demo.

alt text

Control Plane (EDC-V)​

Multi-tenant control plane for negotiation and policy:

  • Shared runtime with isolated participant contexts.
  • Single deployment serves many tenants; per-tenant data planes when needed.

Identity Hub​

Decentralized identity service:

  • DIDs and Verifiable Credentials (VCs).
  • Presentation API to verify credentials.

Issuer Service ​

Credential issuance aligned to governance:

  • Issues VCs after onboarding.
  • Supports multiple credential types (membership, certifications, roles).

Data Plane (EDC Connector)​

Executes the actual data transfer:

  • Proxy transfers; direct access with tokens; file/certificate sharing flows.

Connector Fabric Manager (CFM)​

Automation layer for service providers:

  • Tenant provisioning and catalog setup.
  • Credential orchestration and storage.
  • Agent-based workflows over NATS for reliable async operations.

Supporting Infrastructure​

ComponentPurpose
PostgreSQLPersistent state for all components
HashiCorp VaultSecrets management (keys, tokens)
NATSAsync messaging for CFM orchestration
KeycloakOAuth2 authentication for APIs
TraefikGateway controller for external access

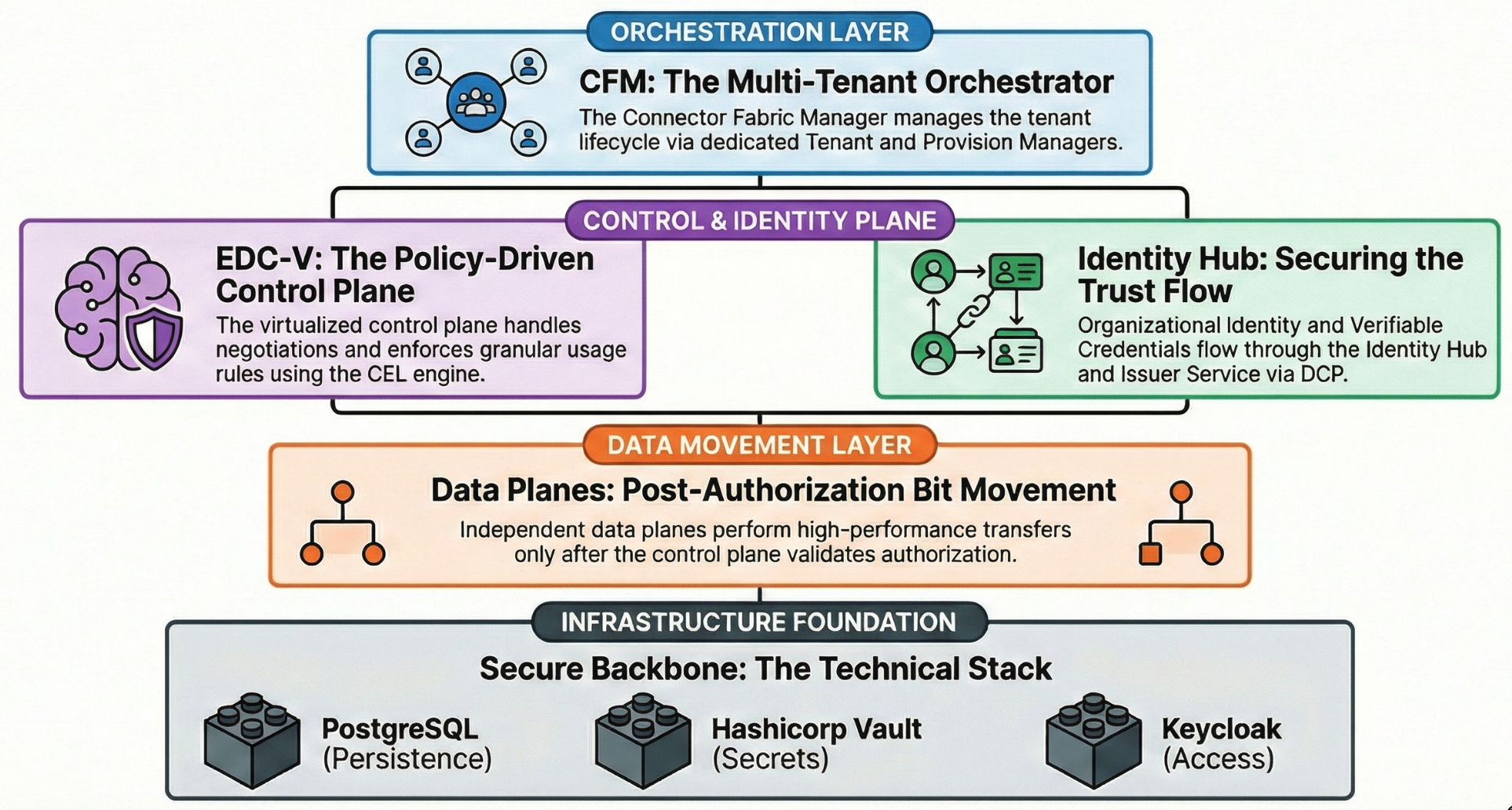

JAD Architecture Overview​

alt text

  • CFM orchestrates tenant lifecycle across core services.
  • Control plane (EDC-V) handles negotiation and policy; identity flows through Identity Hub and Issuer Service; data planes move the bits after authorization.
  • State lives in PostgreSQL; secrets in Vault; access secured via Keycloak.

Getting JAD Running (KinD)​

Prerequisites​

  • Docker, KinD, kubectl, Helm, Java 17+ (if building), Bruno (for API testing).
Building from source (optional)
./gradlew dockerize
kind load docker-image \
ghcr.io/metaform/jad/controlplane:latest \
ghcr.io/metaform/jad/identity-hub:latest \
ghcr.io/metaform/jad/issuerservice:latest \
ghcr.io/metaform/jad/dataplane:latest -n edcv

If you use local images, set imagePullPolicy: Never in manifests.

Step 1: Create the Cluster​

cp ~/.kube/config ~/.kube/config.bak
kind create cluster -n edcv --kubeconfig ~/.kube/edcv-kind.conf
ln -sf ~/.kube/edcv-kind.conf ~/.kube/config

Step 2: Install Traefik Gateway + Gateway API​

helm repo add traefik https://traefik.github.io/charts
helm repo update
helm upgrade --install --namespace traefik traefik traefik/traefik \
--create-namespace -f values.yaml

kubectl apply --server-side --force-conflicts \
-f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.4.1/experimental-install.yaml

Step 3: Network Access (pick one)​

kubectl -n traefik port-forward svc/traefik 80

Step 4: Deploy JAD​

kubectl apply -f k8s/base/
kubectl wait --namespace edc-v --for=condition=ready pod --selector=type=edcv-infra --timeout=90s
kubectl apply -f k8s/apps/
kubectl wait --namespace edc-v --for=condition=complete job --all --timeout=90s

Step 5: Verify​

kubectl get deployments -n edcv
kubectl get jobs -n edcv

Accessing Services​

ServiceURLCredentials
PostgreSQLjdbc:postgresql://postgres.localhost/controlplanecp / cp
Vaulthttp://vault.localhostToken: root
Keycloakhttp://keycloak.localhostadmin / admin

⚠️ Demo credentials only—never use in production.

Walking Through the Demo (step by step)​

Use the Bruno collection in the repo (requests/EDC-V Onboarding) to run these steps without crafting payloads manually.

Step 1: Provision participants (CFM)​

  1. In Bruno, open CFM - Provision Consumer then CFM - Provision Provider and send both requests.
  2. Check Get Participant Profile until every entry in vpas shows "state": "active" (CFM has created keys, DID, credentials, and catalog wiring).

Step 2: Seed the provider with data​

  1. In Policy - Create CEL Expression, post the example expression.
  2. In Asset - Create Asset, register the asset to be shared.
  3. In Policy - Create Access Policy, define who can access.
  4. In ContractDefinition - Create, link asset + policy to publish to the catalog.

Step 3: Execute a transfer​

  1. Consumer calls Catalog - Query to find the offer.
  2. Consumer sends ContractNegotiation - Initiate with required credentials.
  3. On agreement, consumer calls Transfer - Start HTTP Proxy; control plane signals the data plane; download the payload from the returned endpoint.

What Cloud Providers Should Study​

  • Multi-tenancy: ParticipantContext model in EDC-V for density and isolation.
  • CFM agent architecture: Extensible, retryable operations (Vault, DNS, credential agents).
  • API surface: CFM Tenant API (provisioning), Management API (assets/policies/contracts), Identity API, DSP endpoints.
  • Operational patterns: Init jobs, dependency ordering, readiness probes, secrets in Vault.

Extending JAD for Your Environment​

  • Replace infrastructure (managed DB, managed secrets, HA/backup).
  • Add your UI layer (onboarding portal, data management, ops dashboard).
  • Integrate billing/metering at CFM lifecycle hooks.
  • Adapt manifests for your load balancer, DNS, network policies, and monitoring.

Common Questions​

Can I run JAD in production? No, use it as a blueprint and harden for production.

How do credentials get issued? Issuer Service issues VCs; authorization to issue comes from dataspace governance.

How does this relate to MVD? Minimum Viable Dataspace is a two-connector sandbox. JAD shows the hosted, multi-tenant service architecture.
